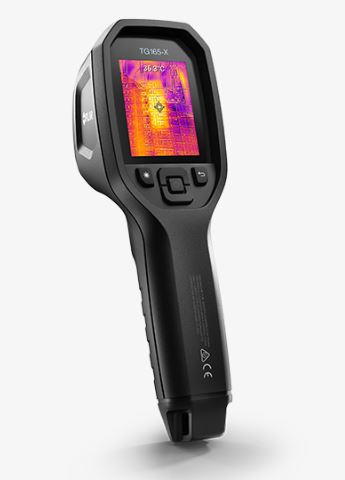

FLIR TG165-X REDUCED

Now Reduced in Price!!!

Was £379 Now £299

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.

• FLIR MSX technology embosses visual detail onto full thermal imagery
• Features a Class-1 bullseye laser pointer for ensured accuracy
• Ideal for pinpointing electrical, mechanical & HVAC/R system faults

Full Specification

Imaging and optical data

• IR resolution: 80 × 60 pixels
• Digital image enhancement: No
• Thermal sensitivity/NETD: <70 mK
• Field of view (FOV): 51° × 66°
• Minimum focus distance: 0.3 m (0.98 ft)
• Distance to spot ratio: 24:1
• Pseudo dual range: No
• Image frequency: 8.7 Hz
• Focus: Fixed

Detector data

• Focal plane array/spectral range: Uncooled Microbolometer/7.5–14 μm
• Detector pitch: 17 μm

Image presentation

• Display resolution: 320 × 240 pixels
• Screen: 2.4 in. portrait, 80° viewing angle
• Image adjustment: Automatic
• Image modes:
  MSX® (Multi Spectral Dynamic Imaging)
  Visual (with temperature reading)
• Gallery: Yes

Measurement and analysis

• Object temperature range Accuracy: -25°C to 300°C (-13°F to 572°F)
• Minimum measurement distance:
  50°C to 100°C (122°F to 212°F) - acc. of ±1.5°C (±3°F)
  0°C to 50°C/100°C to 300°C (32°F to 122°F/212°F to 572°F) - acc. of ±2.5°C (±5°F)
  -25°C to 0°C (-13°F to 32°F) - acc. of ±3°C (±7°F) 0.26 m (0.85 ft.)
• Spotmeter: Centre spot on/off
• Colour palettes: Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava

Set-up

• Set-up commands:
  Local adaptation of units, language, date, and time formats
  Screen brightness (high, medium, low)
  Gallery, deletion of images
• Emissivity correction: Yes: 4 pre-set levels with custom adjustment of 0.1–0.99

Storage of images

• Storage media: 4 GB
• Image storage capacity: 50,000 images
• Image file format: JPEG with spot temp in meta tag

Digital camera

• Resolution: 2 MP (1600 × 1200 pixels)
• Focus: Fixed
• Field of view: 71° × 56°, adapts to the IR lens

Worklight and Laser

• Worklight: LED on/off
• Light output: 100 lumens
• Bullseye laser pointer: Indicating the size of the measurement area
• Laser type: Class 1

Data communication interfaces

• Interfaces: USB 2.0
• USB standard: USB Type-C High Speed; data transfer/power

Power system

• Battery type: Rechargeable Li-ion, 3.7 V battery
• Battery operating time:
  5 hours of scanning (LCM medium brightness)
  4.5 hours with laser on (LCM medium brightness)
• Battery charge life: 30 days minimum
• Charging system: Battery is charged inside the camera; 4 hrs to 90%, 6 hrs. to 100%
• Power management: Adjustable: off, 5 minutes, 15 minutes, 30 minutes

General

• Operating temperature range: -10°C to 45°C (14°F to 113°F)
• Encapsulation: IP54 (IEC60529)
• Shock: 25 g (IEC 60068-2-27)
• Vibration: 2 g (IEC 60068-2-6)
• Drop test: Designed for 2 m (6.56 ft.)
• Safety: CE/CB/EN61010/UL
• Weight: 0.394 kg (13.9 oz)
• Size (L × W × H): 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
• Tripod mounting: UNC 1⁄4”-20
• Country of origin: Taiwan

Material Number: 87501-0101
