Thermal Cameras UK



Regular price £10,449.00 GBP
Regular price Sale price £10,449.00 GBP
Sale Sold out
The new FLIR T500-Series has the features professionals need to accurately troubleshoot hot spots and potential faults.

The new FLIR T500-Series has the features professionals need to accurately troubleshoot hot spots and potential faults.

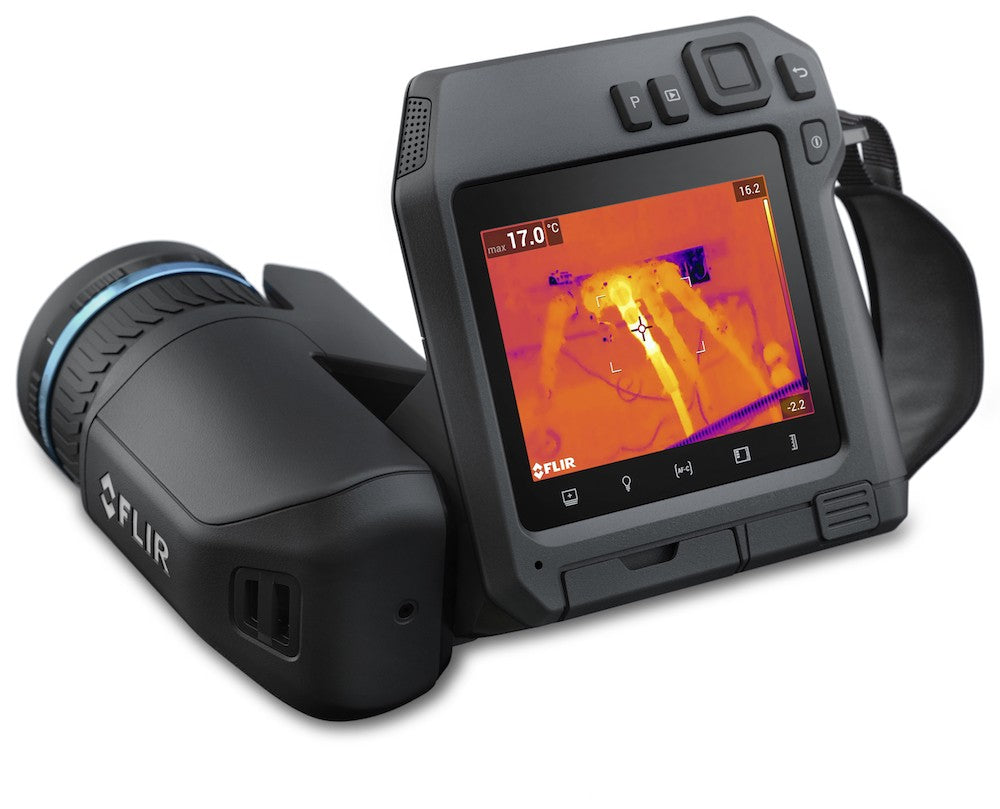

With the 180° rotating lens platform and a bright 4” LCD, FLIR T530/T540 cameras are engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly.

FLIR T530 Thermal Camera - 320 x 240 Pixels, Choice of Lenses Available:

79301-0101 - 14 Degree Lens
79302-0101 - 24 Degree Lens
79303-0101 - 42 Degree Lens
79304-0101 - 24 and 14 Degree Lenses
79305-0101 - 24 and 42 Degree Lenses
79306-0101 - 24, 14 and 42 Degree Lenses
79307-0101 - 42 and 14 Degree Lenses

These products qualify for free delivery by a certified thermographer & free familiarisation training.


Laser-assisted autofocus guarantees you’ll get the tack-sharp focus needed for the most accurate temperature readings, while FLIR Vision Processing™ - powered by MSX®, UltraMax®, and proprietary adaptive filtering algorithms - ensures crisp thermal imagery.

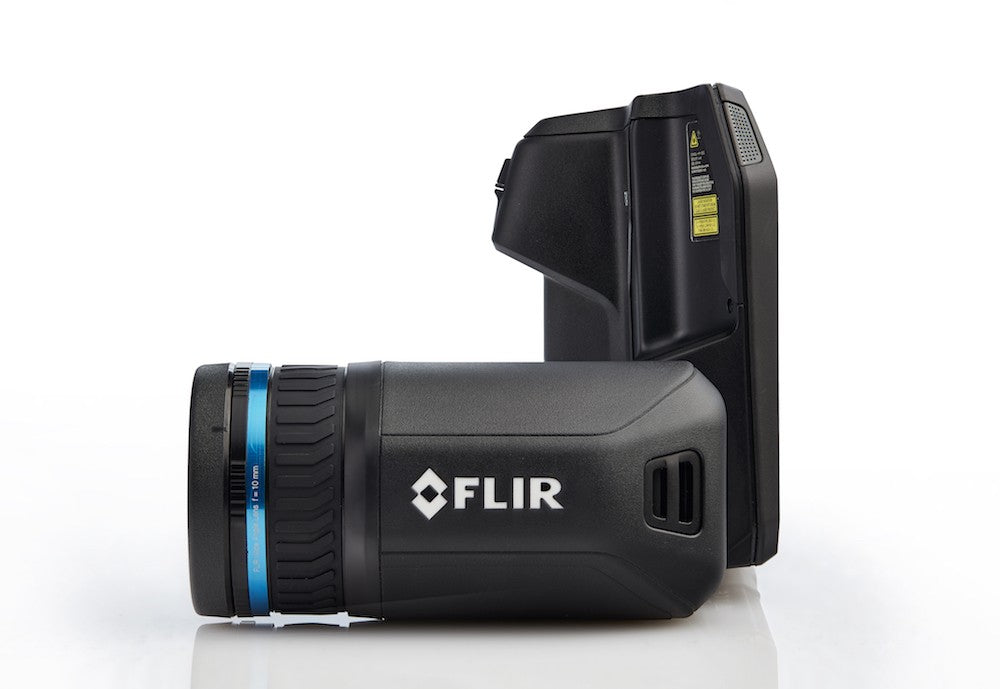

The T500-Series' optical block rotates 180°, making these cameras the most versatile and ergonomic camera in the T-Series line-up. Image targets at any angle - comfortably - all day long, without bending your body or wrist.


Scan for potential faults from a safer distance and over larger areas thanks to a selection of intelligent, interchangeable AutoCal™ optics, outstanding temperature measurement accuracy, and up to 464 x 348 (161,472) true native resolution.


  • 180° rotating optical block. Image targets overhead, below, or even around obstructions from a comfortable position with FLIR's most ergonomically-friendly thermal imaging camera

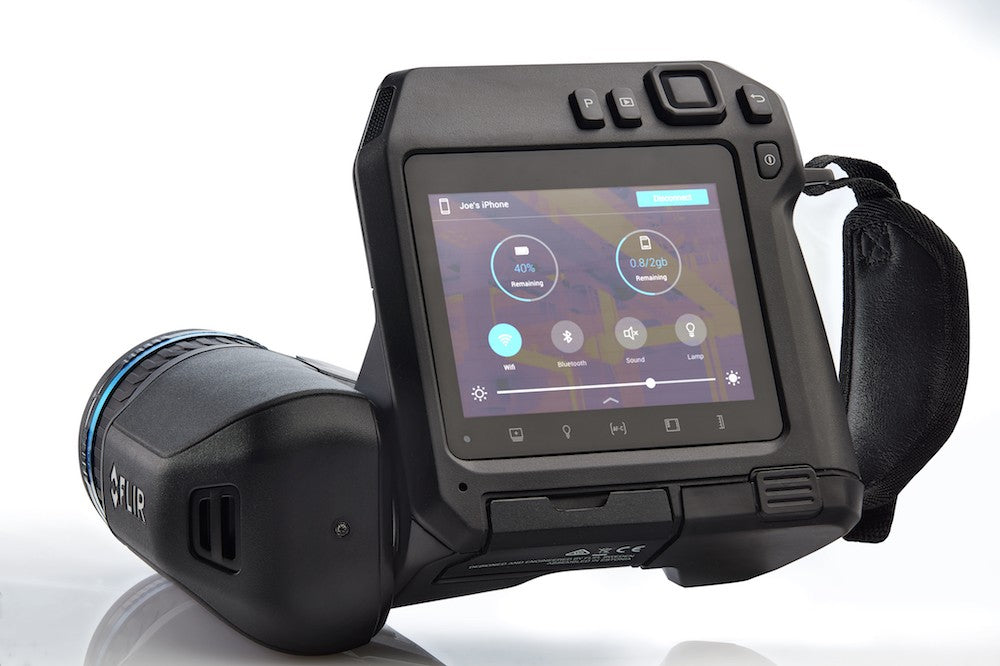

  • Clear view at any angle. Vivid 4” LCD display with a 160° viewing angle makes thermal images easy to see in any environment
  • Quick, precise continuous focus.Laser-assisted autofocus responds instantly to movement, achieving crisp focus even in cluttered surroundings
  • Intuitive interface and navigation. Capacitive touch screen with intuitive menu is easy to navigate, plus you can customize with 2 programmable buttons
  • Updated organisational tools.  Automatic GPS tagging and an improved file structure makes reporting and archiving easier
  • Interchangeable AutoCal™lenses. Interchangeable AutoCal™ optics can be shared between T500-Series cameras or new Exx-Series models without the need for secondary pairing or factory recalibration


IR Resolution - 320 x 240 (76,800 pixels)
UltraMax® Resolution - 307,200 effective pixels

Object Temperature Range
20°C to 120°C (-4°F to 248°F)
0°C to 650°C (32°F to 1202°F)
Optional Calibration:
300°C to 1200°C (572°F to 2192°F)

Digital Zoom - 1-4x continuous

Panorama Image Mode - No

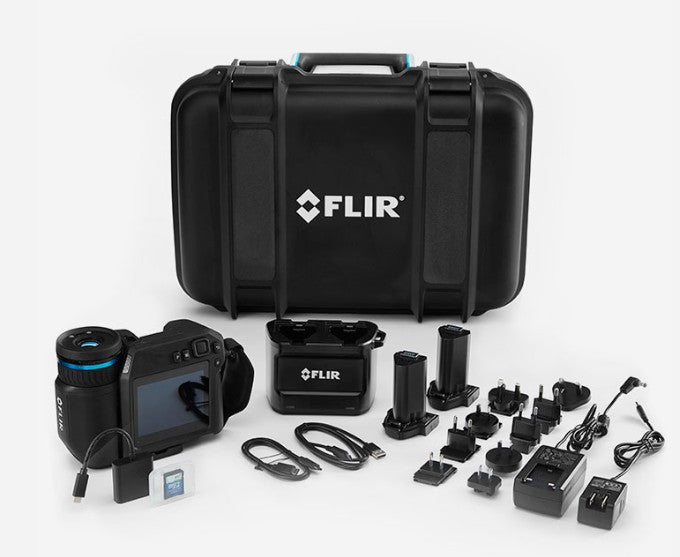

What's In The Box?

  • Infrared camera with lens
  • 2 Batteries
  • Battery Charger
  • Hand Strap
  • Hard Transport Case
  • Lanyards
  • Front Lens Cap
  • Rear Lens Cap
  • Power Supplies
  • Printed Documentation
  • SD Card (8 GB)
  • Cables (USB 2.0 A to USB Type-C,
    USB Type-C to HDMI, USB Type-C to USB Type-C)

Buy Now

To find out more, or to order your T540, please call Thermal Cameras UK on 01462 894144, or email Allister Pirrie at

This product qualifies for free delivery by a certified thermographer with free familiarisation training.

This product was launched on the 9th May 2017.
