FLIR ONE EDGE - Reduced!
FLIR ONE EDGE - Reduced!
Regular price
£250.00 GBP
Regular price
Sale price
£250.00 GBP
Unit price
per
Couldn't load pickup availability
Now Reduced in Price!!!
Was £299 Now £250

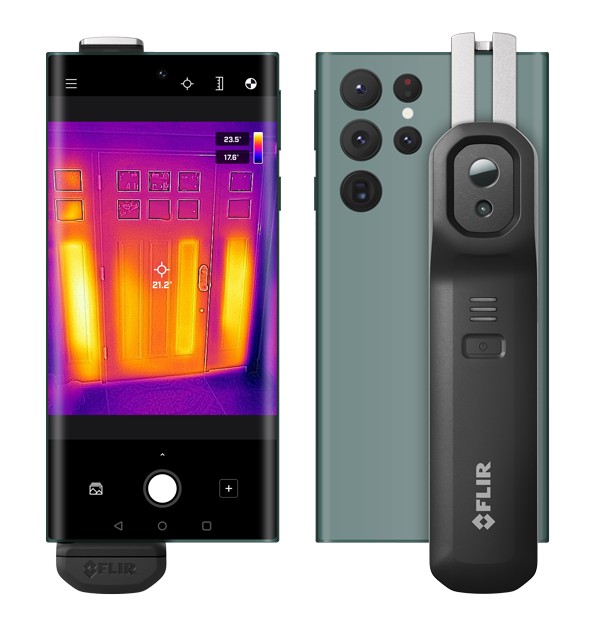

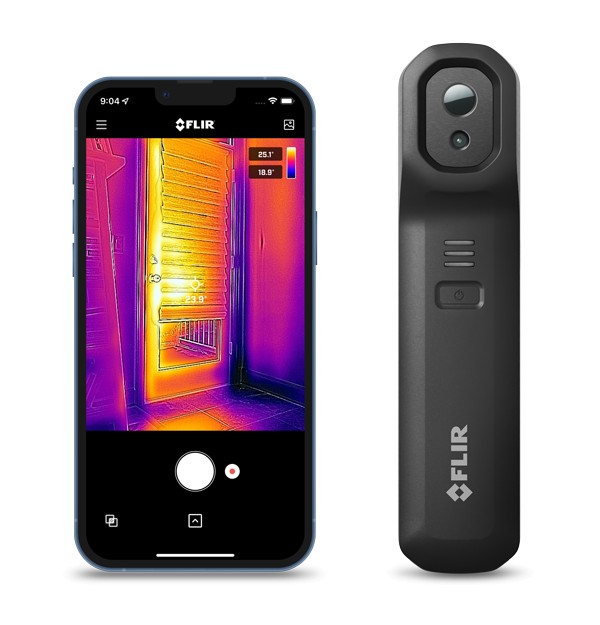

Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices
Key Features:
- Wirelessly connects to your smart device for convenient inspections
- Unrivaled thermal image clarity with MSX® (Multi-Spectral Dynamic Imaging)
- Use the FLIR ONE app for efficient thermal analysis, and seamlessly connect to the FLIR IgniteTM cloud solution
Main Applications:
- Identifying and locating moisture intrusion and insulation deficiencies
- Diagnosing issues in HVAC/R inspections
- Identifying abnormalities in electrical and mechanical components
| Thermal Resolution |
80 × 60 (4,800 pixels)
|
| Battery life |
Approximately 2 hours 30 minutes
|
| Object Temperature Range |
-20°C to 120°C (-4°F to 248°F)
|
| Accuracy |
±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
|
| Operating Temperature |
-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
|
| Spot Meter |
Hottest, Coldest and 3 spot measurement
|
| IMAGING & OPTICAL | |
| Adjustable MSX distance | 30 cm - Infinity |
| Focus |
Fixed 30 cm - Infinity
|
| Frame Rate | 8.7 Hz |
| HFOV/VFOV |
54° ±1° / 42° ±1°
|
| Image Modes |
MSX, Infrared, Visual
|
| Palette |
Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
|
| Shutter |
Automatic/Manual
|
| Thermal Resolution |
80 × 60 (4,800 pixels)
|
| Thermal Sensitivity/NETD | 70 mK |
| Thermal Sensor |
Pixel size 12 µm, 8 to 14 µm spectral range
|
| Visual Resolution | 640 × 480 |
| VividIR | No |
| POWER | |
| Battery charge time |
60–90 min for fully charged
|
| 15 min charging, from empty battery, gives 40 min operating time | |
| Battery life |
Approximately 2 hours 30 minutes
|
| Charging Method |
Female USB-C (5V/1A)
|
| MEASUREMENT & ANALYSIS | |
| Accuracy |
±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
|
| Measurement Corrections |
Emissivity; Reflected apparent temperature (22°C / 72°F)
|
| Object Temperature Range |
-20°C to 120°C (-4°F to 248°F)
|
| Spot Meter |
Hottest, Coldest and 3 spot measurement
|
| GENERAL | |
| Additional Integrations |
Available via device App Store. Development SDK available: https://www.flir.com/developer/mobile-sdk/
|
| Battery charge monitor | 0 to 100% |
| Clip Span |
130 mm (min) / 195 mm (max)
|
| Compatible with FLIR software |
FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
|
| Device Compatibility |
iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets
|
| Dimensions (H x W x D) |
37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
|
| Remote Operation |
Up to 5 m (16.4 ft) from smart device
|
| Weight | 153 g (5.4 oz) |
| ENVIRONMENTAL & CERTIFICATIONS | |
| Certifications |
RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU
|
| Drop test |
Drop from 2 m (6.56 ft)
|
| Emissivity Settings |
Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
|
| IP Rating | IP54 |
| Non-Operating Temperature |
-40°C to 70°C (-40°F to 158°F)
|
| Operating Temperature |
-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
|
| COMMUNICATION & DATA STORAGE | |
| Bluetooth |
Uses Bluetooth to create the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
|
| Capture modes |
Video, Still image
|
| Charging |
Female USB-C (5V/1A)
|
| File Formats |
Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)
|
| WiFi | 802.11 a/b/g/n |
