FLIR E8 Pro
FLIR E8 Pro
Regular price
£2,899.00 GBP
Regular price
Sale price
£2,899.00 GBP
Unit price
per
Couldn't load pickup availability

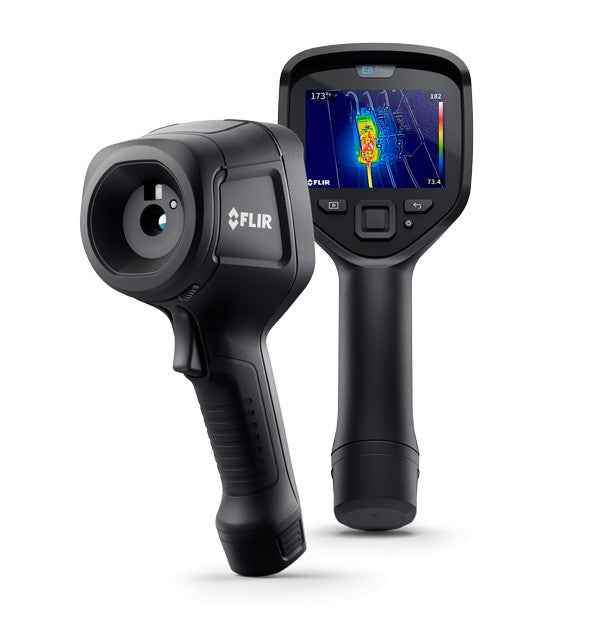

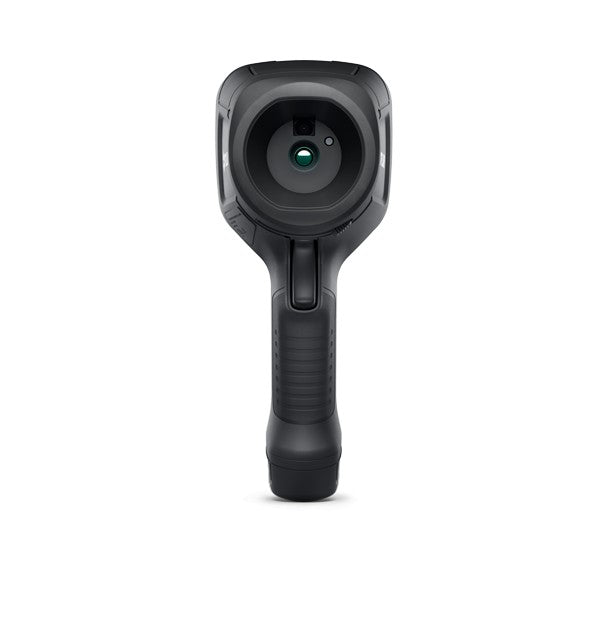

FLIR E8-PRO IR Camera w/MSX and WiFi 320 x 240 Resolution/9Hz
Key Features:
- Quickly recognize where problems are located thanks to FLIR MSX® (Multi-Spectral Dynamic Imaging), which embosses key visual details onto thermal images
- Save time spent on manual adjustments with 1-Touch Level/Span
- Improve inspection efficiency using the 640 × 480 touchscreen, with the ability to add detailed notes to each image
- Edit, store, organize, and share images using the FLIR Ignite cloud service
- Create quick reports in FLIR Ignite from any device, or create advanced reports in FLIR Thermal Studio from a PC
Main Applications:
- Industrial inspections of electrical and mechanical equipment
- Condition monitoring and preventive maintenance of degrading equipment before failure
- Building inspections to ensure energy efficiency
| IR Resolution |
320 × 240 (76,800 pixels)
|
| Accuracy |
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
|
| Field of view (FOV) | 33° |
| Digital Camera | 5 MP |
| Image Modes |
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
|
| Display |
3.5 in, 640 × 480 color LCD
|
| Storage Media |
Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
|
|
IMAGING & O PTICAL |
|
| Color Palettes |
Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
|
| Detector Type |
Uncooled microbolometer
|
| Digital Camera | 5 MP |
| Field of view (FOV) | 33° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Image Modes |
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
|
| IR Resolution |
320 × 240 (76,800 pixels)
|
| Minimum Focus Distance | 0.36 m (1.18 ft) |
|
Spectral Range |
7.5 µm to 13 µm |
| MEASUREMENT & ANALYSIS | |
| Accuracy |
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
|
| Delta T |
Yes, NFPA 70B compliant
|
| Isotherm |
Above alarm, below alarm
|
| Measurements correction |
Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
|
| Object Temperature Range |
-20°C to 550°C (-4°F to 1022°F) in two ranges
|
| Spot Meter |
Center spot; box with min/max
|
| USER INTERFACE | |
| Display |
3.5 in, 640 × 480 color LCD
|
| Text |
Text annotation on image using onscreen keyboard
|
| Touchscreen |
Capacitive touch
|
| POWER | |
|
Battery operating time |
4 hours |
| Battery type |
Rechargeable Lithium-ion battery
|
| Charging system |
Battery is charged inside the camera or in specific charger
|
| Charging Time | 2 hours |
| Power Management |
Automatic shut-down
|
| ENVIRONMENTAL & CERTIFICATIONS | |
| Certifications |
UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
|
| EMC |
EN 301 489-1 EN 301 489-17 EN 61000-6-3 EN 61000-6-2 FCC 47 CFR Part 15 Class B |
| Encapsulation |
IP54 (IEC 60529)
|
|
Operating Temperature Range |
-15°C to 50°C (5°F to 122°F)
|
| Shock |
25 g (IEC 60068-2-27)
|
| Storage Temperature Range |
-40°C to 70°C (-40°F to 158°F)
|
| Vibration |
2 g (IEC 60068-2-6)
|
| GENERAL | |
| Flashlight | Bright LED |
| List of Contents |
Infrared camera, hard transport case, battery (inside camera) + extra battery, tabletop charger, power supply (with EU, UK, US and AU plugs), micro USB adapter, FLIR Thermal Studio Starter, and printed documentation
|
| Packaging Size |
385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in)
|
