Thermal Cameras UK

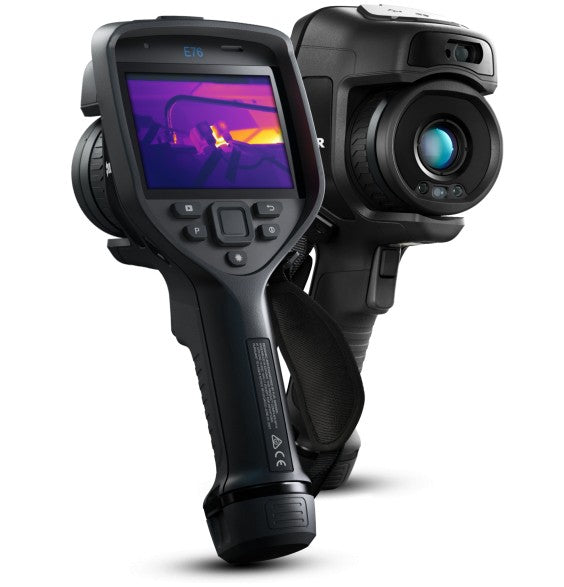

FLIR E76 Models

FLIR E76 Models

Regular price £7,199.00 GBP
Regular price Sale price £7,199.00 GBP
Sale Sold out
Lens

Choice of lenses available.

The FLIR E76 offers complete coverage of near and distant targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections performed from a safe distance.

building energy loss infrared breaker panel infrared overheated roller bearing infrared

FLIR E76 Details

The FLIR E76 offers complete coverage of near and distant targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections performed from a safe distance.

A step up from the FLIR E54, the E76 includes an optional temperature range to 1000°C (1832°F), laser-assisted autofocus, and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective.

The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing

IR resolution 320 × 240 pixels
Resolution with UltraMax®
enhancement
307,200 pixels
MSX® image enhancement Yes: details from visual camera add depth and perspective
Built-in visual camera 5 MP, fixed focus, with built-in LED light
Thermal sensitivity <30 mK @ 30°C (86°F), 42° lens
Temperature range -20°C to 120°C (-4°F to 248°F);
0°C to 650°C (32°F to 1202°F)
Optional temperature range 300°C to 1000°C
(572°F to 1832°F)
Accuracy ±2°C (±3.6°F) or ±2% of the reading
Focus modes Continuous laser distance
meter (LDM), one-shot LDM,

one-shot contrast, manual
Digital zoom

1–4x continuous

Measurement tools

3 spotmeters in live mode, 3 area meters in live mode

Measurement presets

None, center spot, hot spot, cold spot, User Presets 1&2

Available lenses

14°, 24°, 42°, macro (2x)

Lens identification

Automatic (FLIR AutoCalTM)

1-Touch Level/Span

Yes: automatic contrast enhancement

Laser pointer Yes
Laser distance meter

Yes

Area measurement
information

-

On-camera routing software

FLIR Inspection RouteTM — enabled

On-camera report building Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen
FLIR software integration FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio
Radiometric JPEG  Yes
IR, radiometric, visual video recording Yes
IR, radiometric, visual video streaming Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual)
Communication modes USB 2.0, Bluetooth®, Wi-Fi, DisplayPort
METERLiNK® Yes
Display 640 × 480 pixels (VGA) Dragontrail® touchscreen
Drop-testing 3 m (6.6 ft)
Battery operation time >2.5 hours, typical use
