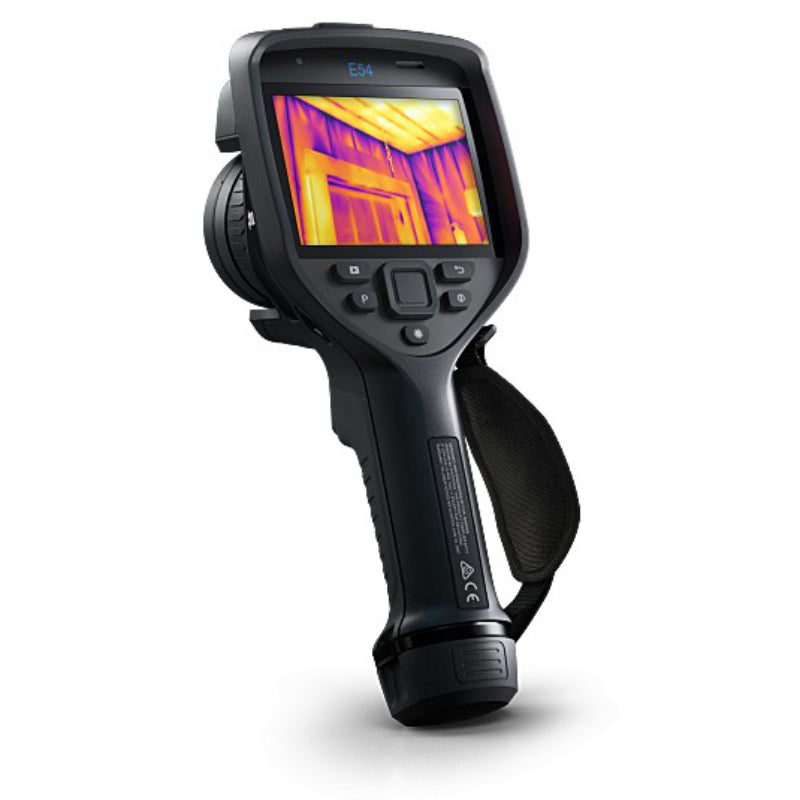

FLIR E54 Advanced Thermal Camera
The FLIR E54 is the 2nd unit in the Exx-Series, offering the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection.
FLIR E54 Details
The FLIR E54 is your entry into the Exx-Series, offering the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection.
The 320 ×240 pixel thermal detector accurately measures temperatures up to 650°C (1202°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX®technology for added detail and perspective.
The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E54 images directly from the camera to the cloud for easy, secure storage and sharing.
| IR resolution | 320 × 240 pixels |
|
Resolution with UltraMax® enhancement |
_ |
| MSX® image enhancement | Yes: details from visual camera add depth and perspective |
| Built-in visual camera | 5 MP, fixed focus, with built-in LED light |
| Thermal sensitivity | <40 mK @ 30°C (86°F) |
| Temperature range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F) |
| Optional temperature range | - |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Focus modes | Manual |
| Digital zoom |
1–4x continuous |
| Measurement tools |
3 spotmeters in live mode, |
| Measurement presets |
None, center spot, hot spot, cold |
| Available lenses |
None (fixed lens) |
| Lens identification |
- |
| 1-Touch Level/Span |
Yes: automatic contrast enhancement |
| Laser pointer | Yes |
| Laser distance meter |
- |
| Area measurement information |
- |
| On-camera routing software |
FLIR Inspection RouteTM — enabled |
| On-camera report building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR software integration | FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio |
| Radiometric JPEG | Yes |
| IR, radiometric, visual video recording | Yes |
| IR, radiometric, visual video streaming | Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
| Communication modes | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| METERLiNK® | Yes |
| Display | 640 × 480 pixels (VGA) Dragontrail® touchscreen |
| Drop-testing | 3 m (6.6 ft) |
| Battery operation time | >2.5 hours, typical use |
